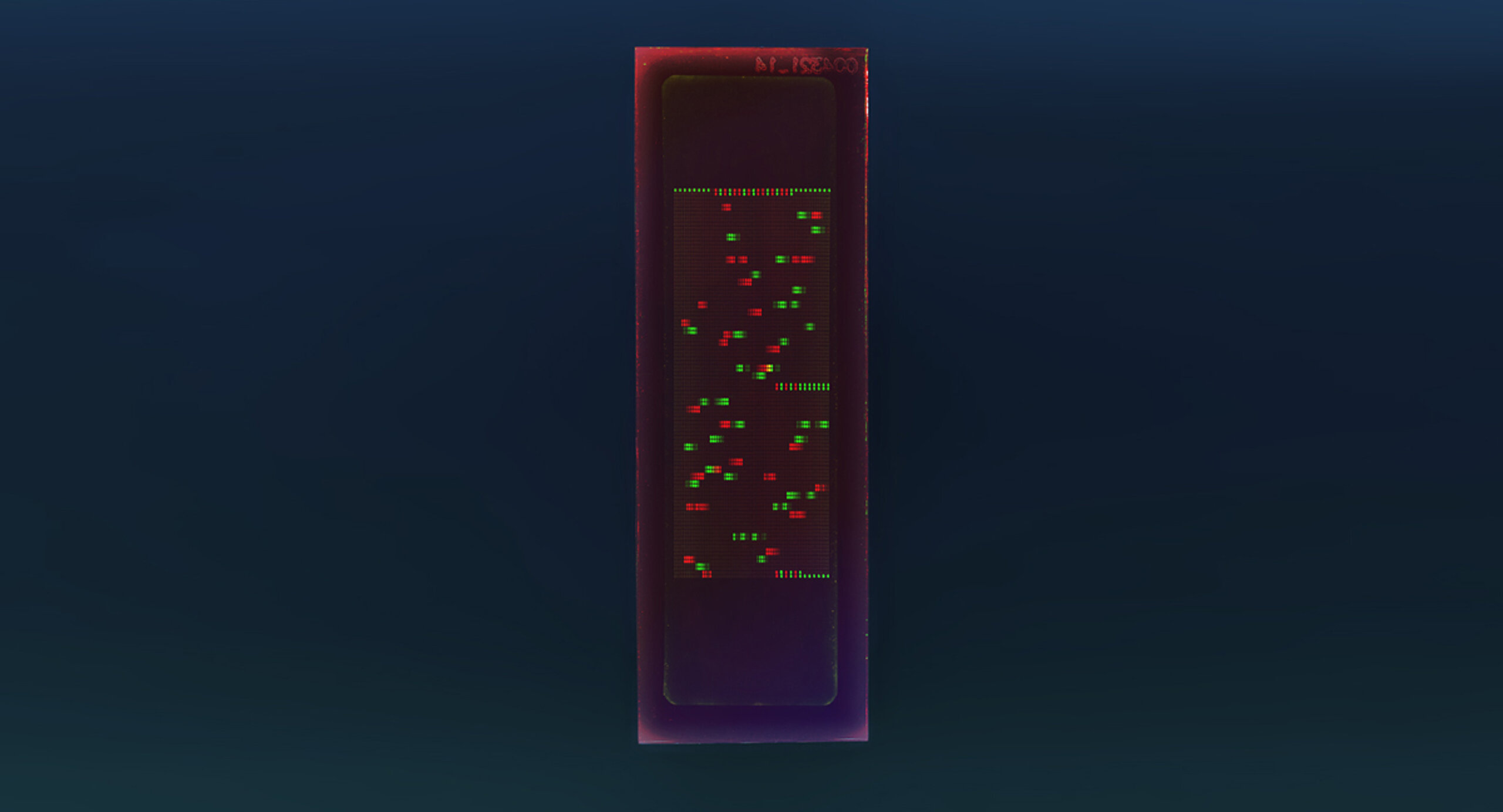

PEPperCHIP® Zika Virus Proteome Microarray

Profile antibody responses against the entire Zika virus proteome.

The PEPperCHIP® Zika Virus Proteome Microarray covers the entire Zika Virus from two different strains translated into highly overlapping peptides. The microarray chip contains 3,419 linear 15-mer peptides with a 14-mer overlap (shift 1) in duplicates for full epitope coverage. Moreover, the microarray contains HA, polio and c-Myc positive control peptides.

Identify, profile and compare Zika Virus specific IgG, IgA, and IgM responses in patient or animal sera for vaccine development. Screen viral antigens to find and characterize immunodominant epitopes for in-vitro diagnostics research. The microarray can be used for proteome-wide epitope mapping, serum screening or biomarker discovery.

Request a Quote »

Microarray information


Microarray content: Zika virus genome polyprotein cleaved into 13 chains: protein C, protein prM, peptide pr, small envelope protein M, envelope protein E, non-structural protein 1, non-structural protein 2A, serine protease subunit NS2B, serine protease subunit NS3, non-structural protein 4A, peptide 2K, non-structural protein 4B, RNA-directed RNA polymerase NS5


Peptide length and overlap: 15 aa peptides with peptide-peptide overlap of 14 aa (shift 1)


Number of peptides / spots: 3,419 / 6,838 (peptides printed in duplicate)


Positive control: HA (YPYDVPDYAG), polio (KEVPALTAVETGAT) and c-Myc (EQKLISEEDL) control peptides (34, 32 and 26 spots each control)


Size and format: 3'' x 1'', 75.4 mm x 25.0 mm x 1.0 mm, containing 1 array copy per chip


Accessories: compatible with 3/1 well PEPperCHIP® Incubation Tray


Sample information


Can be assayed with at least 20 µL serum/plasma or 10-20 µg/mL purified antibody.


Estimated delivery time


1-4 weeks for chip and optional add-on accessories


6-8 weeks when requested with PEPperMAP® Services.



PEPperCHIP® Zika Virus Proteome Microarray Material Data Sheet [download pdf]


PEPperCHIP® Zika Virus Proteome Microarray Peptide Map [download xlsx]


Learn how to perform the assay­­­


PEPperCHIP® Immunoassay Protocol [download pdf] [watch video]


PEPperCHIP® Immunoassay Quickstart Guide [download pdf]



Materials and equipment

We recommend


Incubation tray

PEPperCHIP® Incubation Tray*

Orbital shaker


Blocking reagents

BSA, or Rockland Blocking Buffer*

Control antibodies

PEPperCHIP® Control Antibodies


PBS, Tween 20

Labelled secondary antibodies

Rockland secondary antibodies*

Data acquisition

Microarray scanner

Innopsys InnoScan® 710/710-IR*
LI-COR Odyssey® scanners*

See a list of compatible scanners

Data analysis

Fluorescence spot intensity quantification software

MAPIX Analyzer by Innopsys

Spreadsheet software


*used in-house by PEPperPRINT



Identification of a Zika NS2B Epitope for Which Absence of IgG Response Is Associated with Severe Neurological Symptoms and the Design of a Biomarker Capable of Discriminatory Diagnostics Between Severe and Non Severe Clinical Phenotypes.
Felix Loeffler,  Isabelle F. T. Viana, Nico Fischer, Danilo F. Coêlho, Carolina Santos, Antonio Purificacao Jr, Catarina Araujo, et al., 8. March 2021. []

Mapping Putative B-Cell Zika Virus NS1 Epitopes Provides Molecular Basis for Anti-NS1 Antibody Discrimination between Zika and Dengue Viruses.
Marjorie C. L. C. Freire, Laércio Pol-Fachin, Danilo F. Coêlho, Isabelle F. T. Viana, Tereza Magalhães, Marli T. Cordeiro, Nico Fischer, et al. ACS Omega 2, no. 7 (July 31, 2017): 3913–20. [
