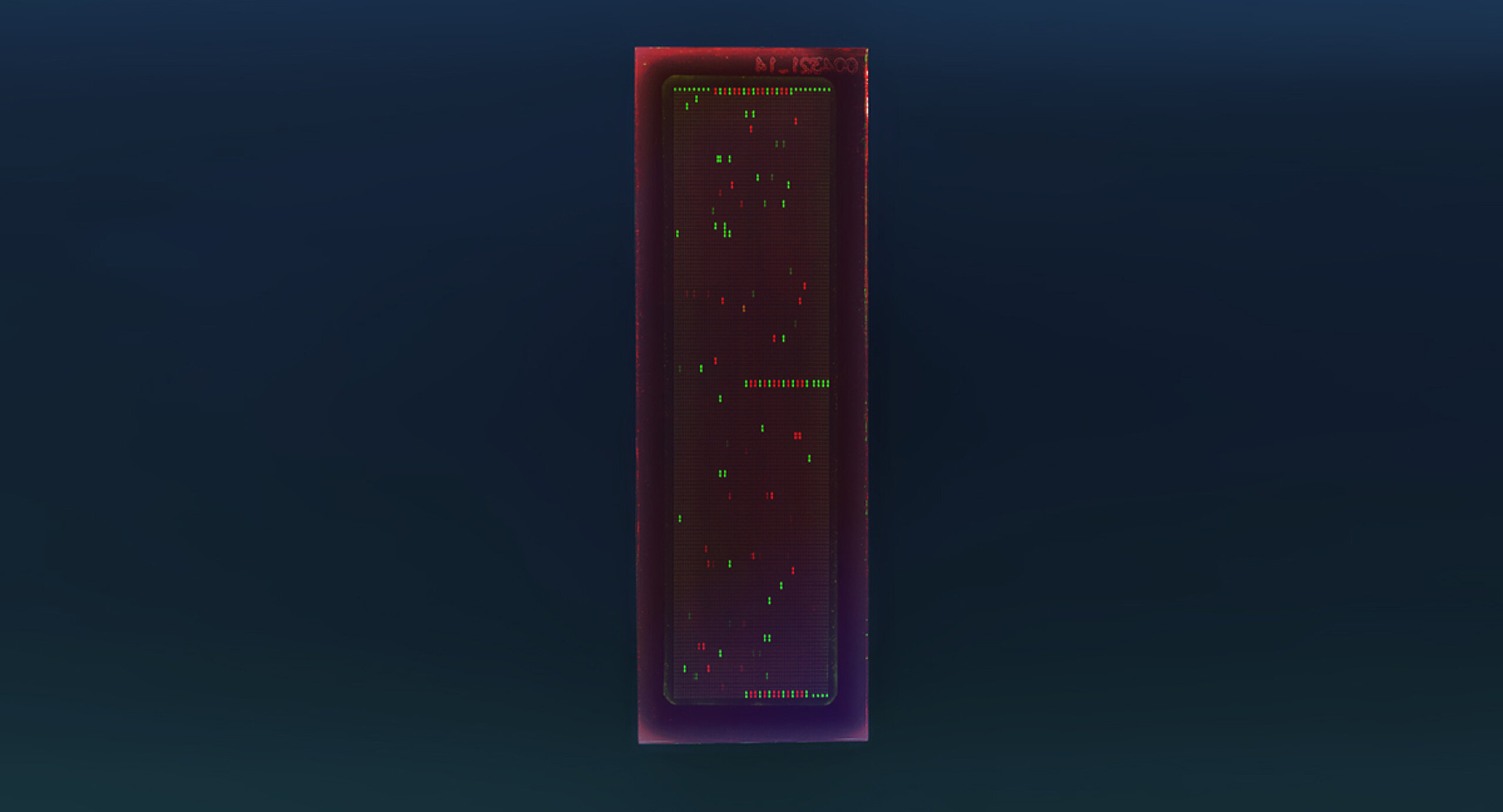

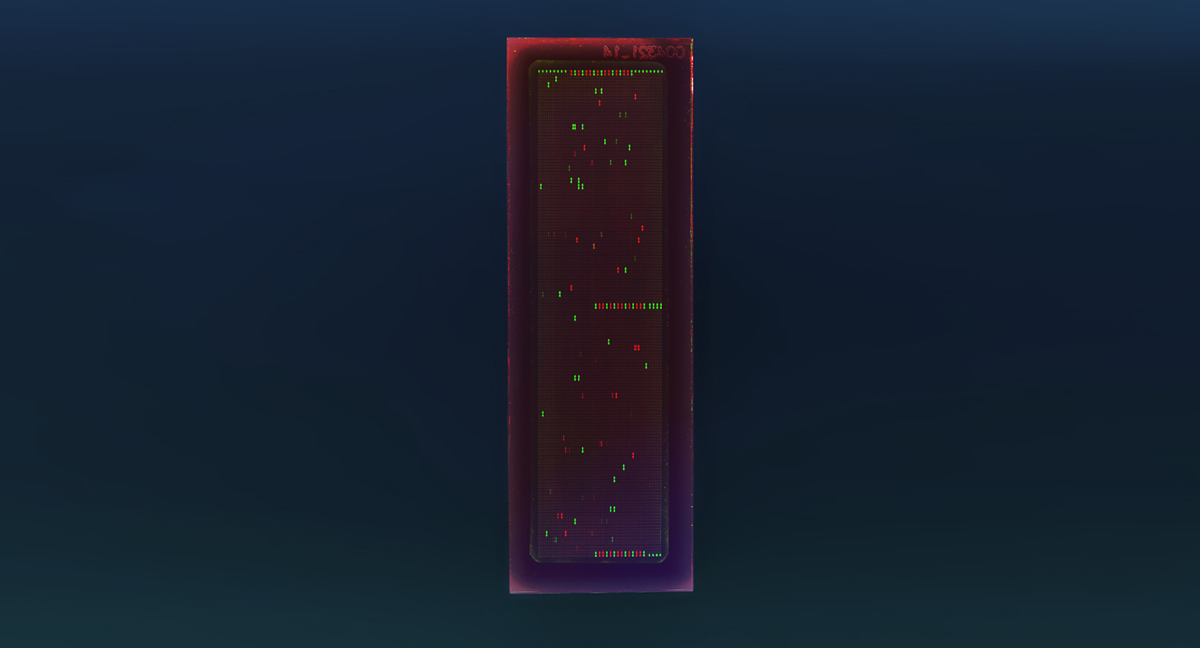

PEPperCHIP® Signature Microarray

Discover unknown antigens or cross-reactive antibodies using a randomized library of 5,500 peptides.

The PEPperCHIP® Signature Microarray covers 5,500 randomized 15-mer linear peptides with varying amino acid distribution in duplicate. Moreover, the microarray contains HA, polio and c-Myc positive control peptides.

The microarray can be used for epitope mapping, serum screening, antigen discovery as well as antibody cross-reactivity analysis.

Request a Quote »

Microarray information

•

Microarray content: 5,500 random linear peptides (6% for R, S, T, W, Y and 5% for A, D, E, F, G, H, I, K, L, M, N, P, Q, V) printed in duplicate

•

Peptide length: 15 aa peptides

•

Number of peptides / spots: 5,500 / 11,000 (peptides printed in duplicate)

•

Positive control: HA (YPYDVPDYAG), polio (KEVPALTAVETGAT) and c-Myc (EQKLISEEDL) control peptides (28, 52 and 38 spots each control)

•

Size and format: 3'' x 1'', 75.4 mm x 25.0 mm x 1.0 mm, containing 1 array copy per chip

•

Accessories: compatible with 3/1 well PEPperCHIP® Incubation Tray



Sample information

•

Can be assayed with at least 20 µL serum/plasma or 10-20 µg/mL purified antibody.



Estimated delivery time

•

1-4 weeks for chip and optional add-on accessories

•

6-8 weeks when requested with PEPperMAP® Services.

Documentation

•

PEPperCHIP® Signature Microarray Material Data Sheet [download pdf]

•

PEPperCHIP® Signature Microarray Peptide Map [download xlsx]



Learn how to perform the assay­­­

•

PEPperCHIP® Immunoassay Protocol [download pdf] [watch video]

•

PEPperCHIP® Immunoassay Quickstart Guide [download pdf]



Steps

Materials and equipment

We recommend

Immunoassay

Incubation tray

PEPperCHIP® Incubation Tray*

Orbital shaker

-

Blocking reagents

BSA, or Rockland Blocking Buffer*

Control antibodies

PEPperCHIP® Control Antibodies

Buffers

PBS, Tween 20

Labelled secondary antibodies

Rockland secondary antibodies*

Data acquisition

Microarray scanner

Innopsys InnoScan® 710/710-IR*
LI-COR Odyssey® scanners*

See a list of compatible scanners

Data analysis

Fluorescence spot intensity quantification software

MAPIX Analyzer by Innopsys

Spreadsheet software

-

*used in-house by PEPperPRINT





High-Throughput Epitope Profiling of Antibodies in the Plasma of Alzheimer’s Disease Patients Using Random Peptide Microarrays.
Kyu-Young Sim, Sang-Heon Park, Kyu Yeong Choi, Jung Eun Park, Jung Sup Lee, Byeong C. Kim, Jeonghwan Gwak, Woo Keun Song, Kun Ho Lee, and Sung-Gyoo Park. Scientific Reports 9, no. 1 (December 2019): 4587. [doi.org/10.1038/s41598-019-40976-x
