PEPperCHIP® SARS-CoV Antigen Microarray

Profile antibody responses against 4 selected antigens of SARS-CoV-1.

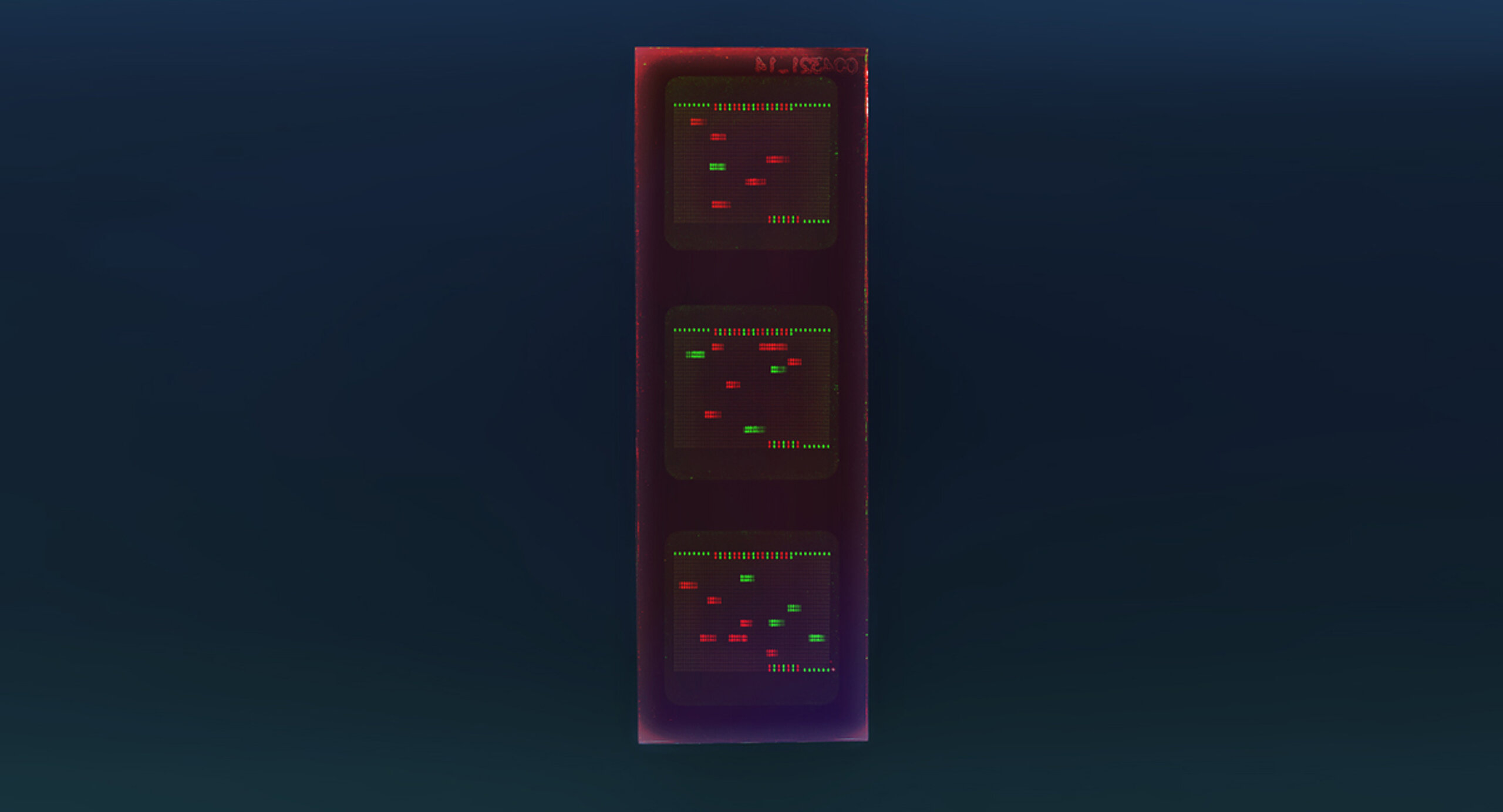

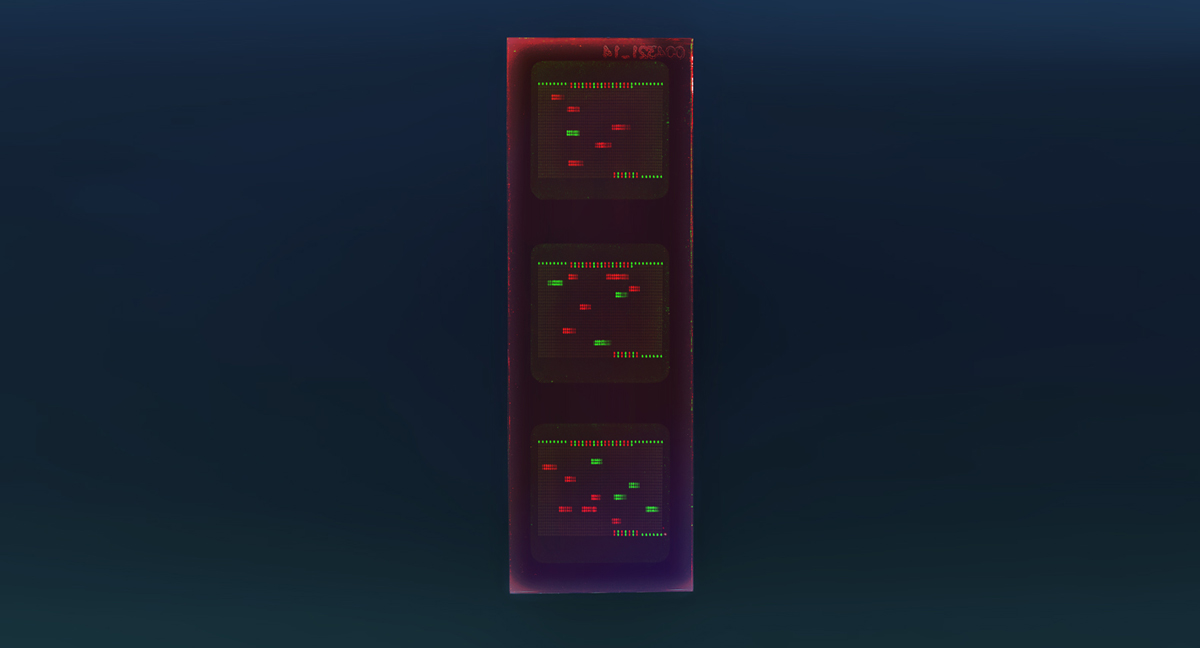

The PEPperCHIP® SARS-CoV Antigen Microarray covers four selected antigens of SARS-CoV-1 translated into 998 highly overlapping peptides. The microarray chip contains linear 15-mer peptides with a 13-mer overlap (shift 2) in duplicates for full epitope coverage. Each microarray chip contains three array copies for one-by-one assays. Moreover, the microarray contains HA, polio and c-Myc positive control peptides.

The microarray can be used for epitope mapping, serum screening or biomarker discovery.

Request a Quote »

Microarray information


Microarray content: 4 selected antigens of SARS coronavirus (SARS-CoV-1): spike glycoprotein (S protein), nucleoprotein (Nucleocapsid protein, NC), M protein, envelope small membrane protein (E protein, sM)


Peptide length and overlap: 15 aa peptides with peptide-peptide overlap of 13 aa (shift 2)


Number of peptides / spots: 998 / 1,996 (peptides printed in duplicate)


Positive control: HA (YPYDVPDYAG), polio (KEVPALTAVETGAT) and c-Myc (EQKLISEEDL) control peptides (21, 26 and 18 spots each control)

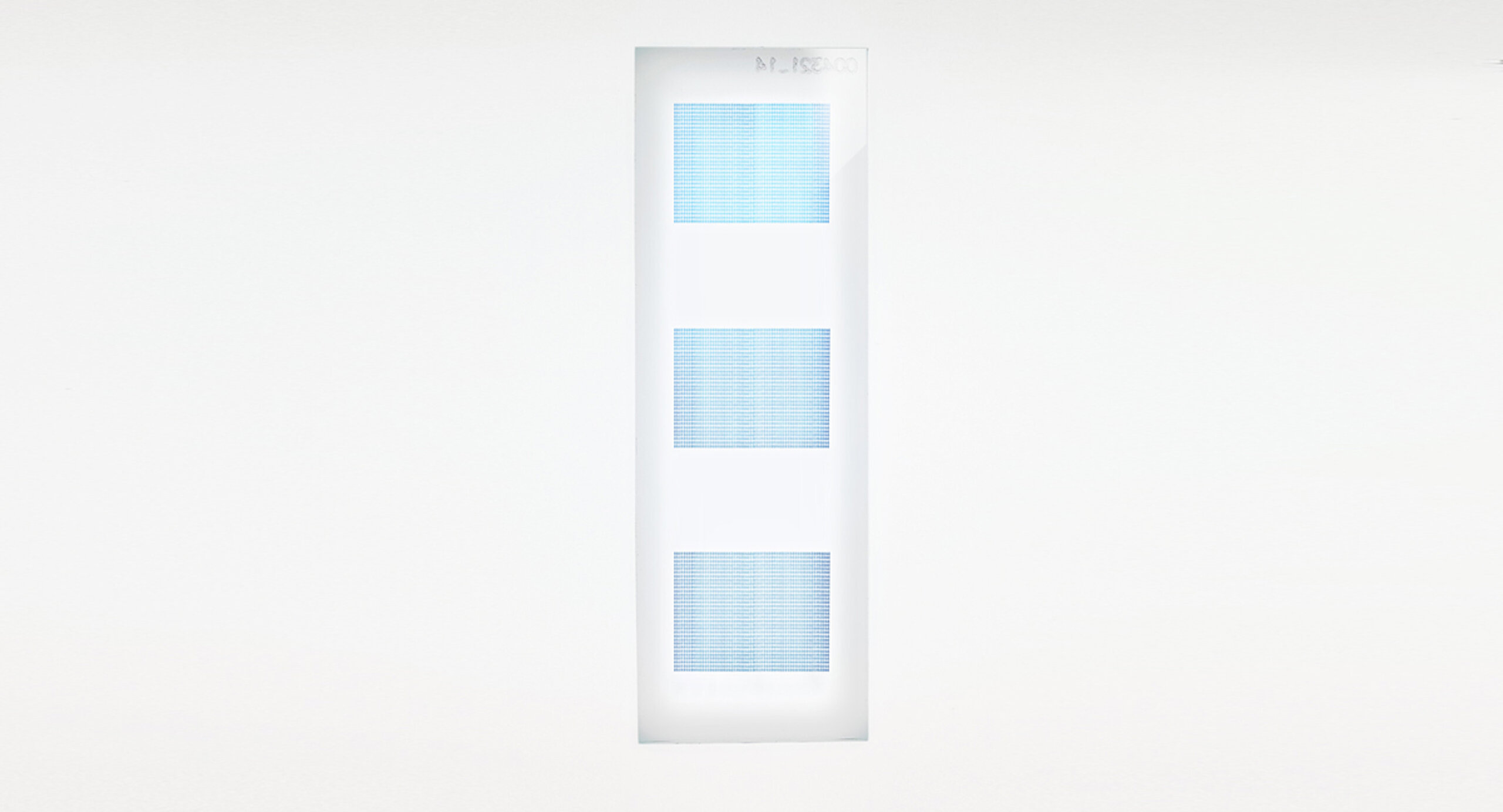

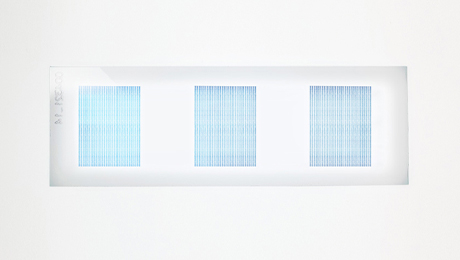

Size and format: 3'' x 1'', 75.4 mm x 25.0 mm x 1.0 mm, containing 3 array copies per chip


Accessories: compatible with 3/3 well PEPperCHIP® Incubation Tray


Sample information


Can be assayed with at least 20 µL serum/plasma or 10-20 µg/mL purified antibody.


Estimated delivery time


1-4 weeks for chip and optional add-on accessories


6-8 weeks when requested with PEPperMAP® Services.



PEPperCHIP® SARS-CoV Antigen Microarray Material Data Sheet [download pdf]


PEPperCHIP® SARS-CoV Antigen Microarray Peptide Map [download xlsx]


Learn how to perform the assay­­­


PEPperCHIP® Immunoassay Protocol [download pdf] [watch video]


PEPperCHIP® Immunoassay Quickstart Guide [download pdf]



Materials and equipment

We recommend


Incubation tray

PEPperCHIP® Incubation Tray*

Orbital shaker


Blocking reagents

BSA, or Rockland Blocking Buffer*

Control antibodies

PEPperCHIP® Control Antibodies


PBS, Tween 20

Labelled secondary antibodies

Rockland secondary antibodies*

Data acquisition

Microarray scanner

Innopsys InnoScan® 710/710-IR*
LI-COR Odyssey® scanners*

See a list of compatible scanners

Data analysis

Fluorescence spot intensity quantification software

MAPIX Analyzer by Innopsys

Spreadsheet software


*used in-house by PEPperPRINT



Longitudinal Development of Antibody Responses in COVID-19 Patients of Different Severity with ELISA, Peptide, and Glycan Arrays: An Immunological Case Series.
Jasmin Heidepriem, Christine Dahlke, Robin Kobbe, René Santer, Till Koch, Anahita Fathi, Bruna M. S. Seco, et al. Pathogens 10, Nr. 4 (April 2021): 438.

Immunodominant B Cell Epitope in SARS-CoV-2 RBD Comprises a B.1.351 and P.1 Mutation Hotspot: Implications for Viral Spread and Antibody Escape.
Keity Souza Santos, Jamille Ramos Oliveira, Rafael Rahal G. Machado, Helen Andrade Arcuri, Jhosiene Yukari Magawa, Isabela Pazotti Daher, Alysson Henrique Urbanski, et al. MedRxiv, 12. March 2021, 2021.03.11.21253399.

SARS-CoV-2 proteome-wide analysis revealed significant epitope signatures in COVID-19 patients.
Tatjana Schwarz, Kirsten Heiss, Yuvaraj Mahendran, Fiordiligie Casilag, Florian Kurth, Leif Sander, Clemens-Martin Wendtner, Manuela A. Hoechstetter, Marcel A. Müller, Renate Sekul, Christian Drosten, Volker Stadler and Victor M. Corman. Front. Immunol. [

SARS-CoV-2 Spike Protein Arrested in the Closed State Induces Potent Neutralizing Responses.
George W. Carnell, Katarzyna A. Ciazynska, David A. Wells, Xiaoli Xiong, Ernest T. Aguinam, Stephen H. McLaughlin, Donna Mallery. Preprint. Immunology, 14. January 2021. [

SARS-CoV-2 Epitope Mapping on Microarrays Highlights Strong Immune-Response to N Protein Region.
Angelo Musicò, Roberto Frigerio, Alessandro Mussida, Luisa Barzon, Alessandro Sinigaglia, Silvia Riccetti, Federico Gobbi. Vaccines 9, Nr. 1 (11. January 2021): 35. [

Recent Advances in the Diagnosis of COVID-19: A Bird’s Eye View.
Bhawna Sharma, Mohd FardeenHusain Shahanshah, Sanjay Gupta, and Vandana Gupta. Expert Review of Molecular Diagnostics, 10. January 2021, 14737159.2021.1874354. [

Generation of Chicken IgY against SARS-COV-2 Spike Protein and Epitope Mapping.
Yan Lu, Yajun Wang, Zhen Zhang, Jingliang Huang, Meicun Yao, Guobin Huang, Yuanyuan Ge, et al. Published by Juraj Ivanyi. Journal of Immunology Research 2020 (16. October 2020): 1–8. [

Rapid Response to Pandemic Threats: Immunogenic Epitope Detection of Pandemic Pathogens for Diagnostics and Vaccine Development Using Peptide Microarrays.
Kirsten Heiss, Jasmin Heidepriem, Nico Fischer, Laura K Weber, Christine Dahlke, Thomas Jaenisch, und Felix F Loeffler. Journal of Proteome Research, 5. September 2020 [

Molecular and Serological Tests for COVID-19. A Comparative Review of SARS-CoV-2 Coronavirus Laboratory and Point-of-Care Diagnostics.
Kubina, Robert, und Arkadiusz Dziedzic. Diagnostics 10, Nr. 6 (26. June 2020): 434. [

Distinct Early IgA Profile May Determine Severity of COVID-19 Symptoms: An Immunological Case Series.
Dahlke, Christine, Jasmin Heidepriem, Robin Kobbe, Rene Santer, Till Koch, Anahita Fathi, My L. Ly, et al. Preprint. Infectious Diseases (except HIV/AIDS), April 17, 2020 []
