How peptide microarrays advance biomarker discovery

Despite decades of progress in genomics and proteomics, biomarker discovery remains one of the most persistent bottlenecks in biotechnology. Identifying reproducible, clinically relevant markers still demands long development cycles, extensive validation, and significant investment. For companies seeking to accelerate therapeutic programs or bring diagnostics to market faster, the challenge is not only to find biomarkers but to do so with precision, scalability, and confidence.

Peptide microarrays are redefining what is possible at the discovery stage. By enabling high-throughput screening of thousands of peptides representing potential epitopes, they reveal binding patterns and immune responses with unparalleled resolution. This precision – down to individual amino acids – makes peptide microarrays uniquely suited to detect antibody signatures, map immune interactions, and uncover biomarkers that remain invisible to conventional protein-level assays.

In the following sections, we examine how peptide microarrays work, where they provide the greatest value in biomarker discovery, and what technical and strategic considerations determine their success.

What are peptide microarrays?

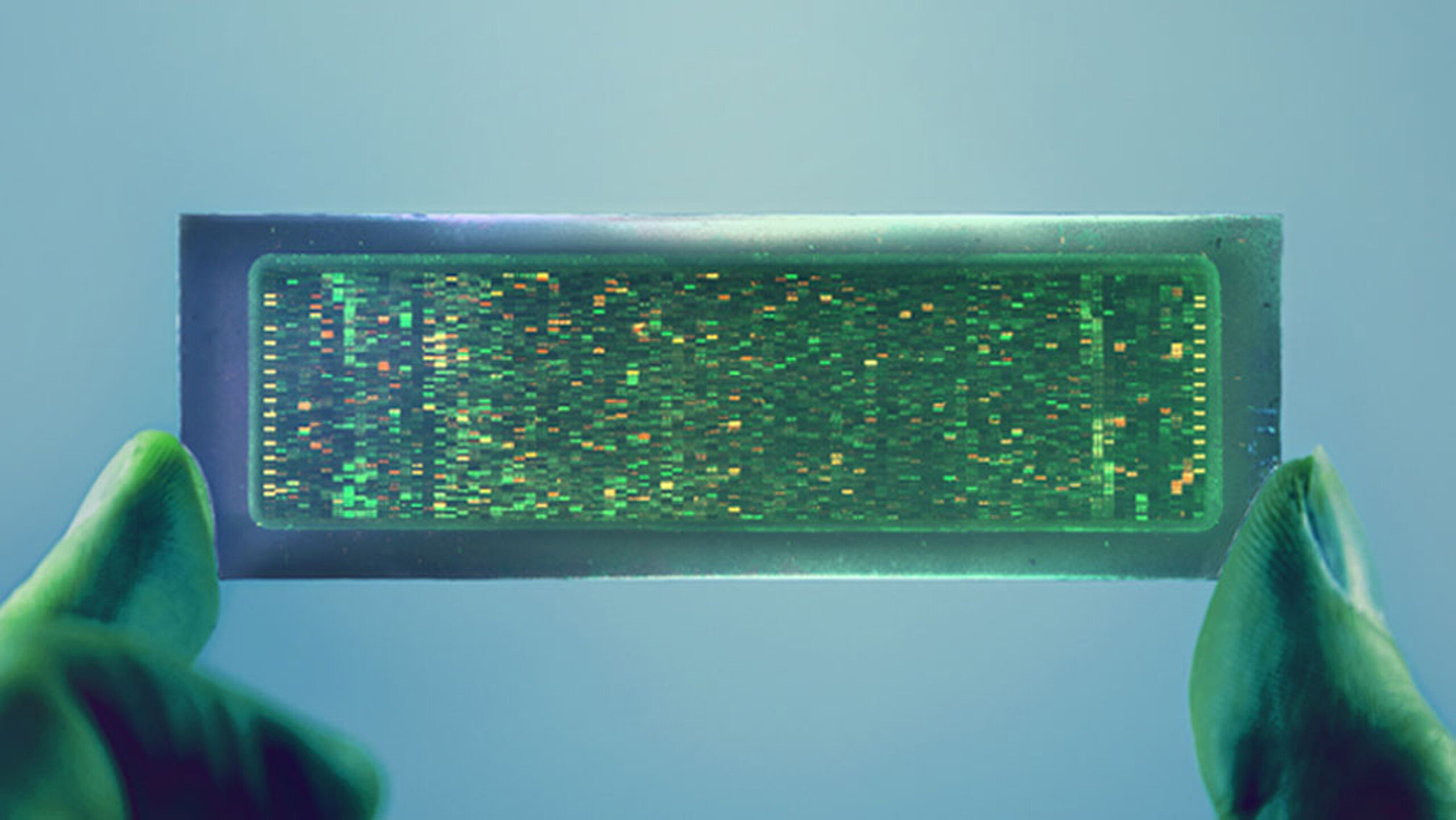

At their core, peptide microarrays consist of libraries of short synthetic peptides (typically 15 amino acids, but can vary) immobilised in defined spots on flat substrates such as glass slides or polymer surfaces. The peptides may correspond to linear or conformational epitopes of proteins, may incorporate post‐translational modifications, or may be designed de novo to explore new binding motifs.

To perform a screening experiment, the array is incubated with a biological sample – such as sera, plasma, cell lysate, or purified proteins/antibodies – that may contain targets of interest (for example, autoantibodies, binding proteins, enzyme substrates). After incubation and washing, binding is detected through fluorescence-based readouts. The resulting intensity patterns provide a quantitative map of interaction strengths across the peptide library. This dataset can then be analyzed to identify peptide sequences associated with particular biological or clinical states, such as disease-specific antibody signatures or therapy-response biomarkers.

Compared to protein microarrays (where full-length proteins or antibodies are immobilised), laser-printed peptide microarrays, such as PEPperPRINT’s PEPperCHIP^® platform, offer several decisive advantage:

• Epitope-level resolution: the ability to map binding at a 1-amino acid resolution, enabling fine definition of interaction sites. This level of granularity is particularly valuable for researchers designing or validating antibodies, since even a single point mutation at or near an epitope can abolish binding.
• Library flexibility and customisation: the synthetic peptides can be modified (e.g., phosphorylation, glycosylation), truncated, mutated, or entirely designed from scratch.
• Throughput and cost-efficiency: unlike spotted peptide arrays, where each peptide must be synthesized individually, PEPperPRINT’s laser-based in situ synthesis allows tens of thousands of peptides to be generated directly on the array surface in a single run. This approach not only increases throughput but also significantly reduces synthesis cost, making large-scale analysis economically feasible.

These features make peptide microarrays a powerful discovery platform that bridges molecular precision with experimental scalability.

The role of peptide microarrays in biomarker discovery

The discovery and validation of biomarkers have been essential to nearly every major advancement in precision medicine, from patient stratification to therapy monitoring and early disease detection. Yet, despite the explosion of omics technologies, identifying specific molecular signatures that translate into clinical utility remains a considerable challenge. Peptide microarrays help close this gap by providing a scalable, high-resolution method for identifying molecular interactions at the epitope level.

One of the most mature and productive applications of peptide microarrays lies in the systematic mapping of antibody responses in patient samples, also known as serological profiling. By creating a library of overlapping peptides across a pathogen proteome, a tumor antigen library, or a set of autoantigens, researchers can identify which precise peptide sequences are recognized by antibodies in disease or treatment contexts. This enables the discovery of disease-specific immune signatures and the differentiation of patient subgroups based on their antibody repertoires.

Beyond immune profiling, peptide microarrays also provide an effective platform for studying enzyme-substrate interactions and post-translational modifications (PTMs). Arrays containing phosphorylated, glycosylated, or acetylated peptides can be used to screen for specific binding events involving kinases, phosphatases, or PTM-recognizing domains. Such data can shed light on signaling pathways and identify activity-based biomarkers, where an enzyme’s substrate preference or modification pattern reflects a particular disease state or therapeutic response. Because peptide libraries can be designed to cover entire families of motifs, or multiple proteins from the entire human proteome (such as those included in the HuProt™ Human Proteome Microarray), they offer a systematic approach to mapping functional interactions at scale.

Applications of peptide microarrays in biomarker discovery

Whether used to characterize therapeutic antibodies, validate diagnostic targets, or uncover new disease mechanisms, peptide microarrays have become a cornerstone of modern biomarker discovery. The examples below illustrate how the technology delivers actionable insights across diverse applications.

Cancer immunotherapy and resistance mechanisms

In oncology and immunotherapy, for instance, peptide microarrays have been used to profile antibody responses before and after checkpoint blockade, revealing predictive biomarkers associated with therapeutic outcome.

In a 2023 study, researchers in Argentina investigating resistance mechanisms to bevacizumab,  an anti-vascular endothelial growth factor (VEGF) therapy, discovered that galectin-1 (Gal1) promotes angiogenesis even under VEGF blockade. Using PEPperPRINT peptide microarrays, they mapped the epitopes of newly developed fully human anti-Gal1 antibodies. This analysis pinpointed a unique binding site on Gal1, confirming antibody specificity and eliminating potential cross-reactivity with related galectins. By linking antibody characterization to a functional resistance pathway, the study identified Gal1 as both a biomarker and a therapeutic target for overcoming anti-VEGF resistance.

Autoimmunity and idopathic disorders

Beyond oncology, peptide microarrays are advancing discovery in autoimmune and idiopathic diseases. A study from the University of Bern linked sudden infant death syndrome (SIDS) to an autoimmune mechanism involving the TRPV2 ion channel. Researchers compared sera from infants who died of SIDS, accidental suffocation, or unrelated causes, and found anti-TRPV2 autoantibodies in 84.6% of SIDS cases versus 25% of controls.

Using PEPperCHIP^® Peptide Microarrays, the team screened antibodies against 100 cardiac ion-channel epitopes and identified TRPV2 as the only significant hit. Further mouse experiments showed that maternal immunization with TRPV2 peptides induced antibody transfer and a 5- to 10-fold increase in neonatal mortality, providing mechanistic evidence that TRPV2 autoimmunity may disrupt cardiac function. This work positions anti-TRPV2 antibodies as a biomarker candidate for SIDS risk, introduces autoimmunity as a plausible biological cause of otherwise unexplained infant deaths, and exemplifies how peptide microarrays can uncover pathogenic antibodies in complex immune-mediated conditions.

Infectious disease and prognostic immune signatures

Peptide microarrays also advance biomarker discovery in infectious diseases, where deciphering antibody patterns can inform both diagnosis and prognosis.

A study on Zika virus infection illustrates how this technology can disentangle immune profiles underlying divergent clinical outcomes. German researchers investigated serum samples from individuals infected with the Zika virus, distinguishing between those who developed the non-severe (classical) disease and those who experienced severe neurological complications. Using high-density peptide microarrays containing peptides derived from the Zika NS1 and NS2B proteins, they comprehensively profiled the IgG antibody responses across both groups.

The analysis revealed a single dominant IgG epitope within NS2B, strongly recognized in non-severe infections but absent in patients who progressed to neurological disease. This distinctive antibody pattern suggested that loss of the NS2B IgG response could serve as a predictive biomarker for severe Zika outcomes.

What sets PEPperPRINT’s peptide microarrays apart

Among peptide microarray technologies, PEPperPRINT’s platform distinguishes itself through an innovative approach. Rather than relying on conventional spotting or photolithographic methods, PEPperPRINT developed a proprietary laser-based peptide printing process that enables in situ synthesis of peptides directly on coated glass slides. This method ensures exceptional spatial precision, near-complete coupling efficiency (99%), and cost-effective production of ultra-high-density peptide arrays in a combination unmatched by traditional array technologies.

This unique synthesis principle translates into practical advantages that set PEPperPRINT’s platform apart:

• Unparalleled flexibility in array design: Any sequence, motif, or diverse post-translational modifications can be incorporated, from entire pathogen proteomes to fully customized libraries of linear or cyclic peptides. This design freedom enables the rapid creation of application-specific microarrays for clinical biomarker discovery.
• Superior density and data quality: The laser-printing process supports the production of arrays containing tens of thousands of peptides with technical replicates, ensuring statistical robustness and allowing simultaneous screening of multiple samples with minimal material consumption.
• Streamlined translation to diagnostics: Hits identified on discovery arrays can be directly transferred into ELISA or Luminex assay formats, accelerating the path from screening to validated diagnostic applications.

By combining technological precision with biological depth, PEPperPRINT’s platform bridges the gap between high-throughput discovery and clinical implementation. Its proven success across oncology, infectious disease, and autoimmune research demonstrates how peptide microarrays can transform biomarker identification from serendipitous finding to reproducible, data-driven insight.

Toward a new standard in biomarker discovery

Peptide microarrays are reshaping biomarker discovery by enabling epitope-level resolution at a large scale. Through innovations such as PEPperPRINT’s proprietary laser printing synthesis, they offer scientists and biotech leaders a platform that is not only technically advanced but strategically enables reducing discovery time, improving reproducibility, and providing a direct route from molecular understanding to therapeutic and diagnostic innovation.

As medicine continues to move toward precision and personalization, technologies that deliver both resolution and scalability will define the next generation of biomarker breakthroughs. PEPperPRINT’s peptide microarrays are already helping make that future a reality.

Contact PEPperPRINT today to explore how peptide microarrays can accelerate your biomarker discovery.
