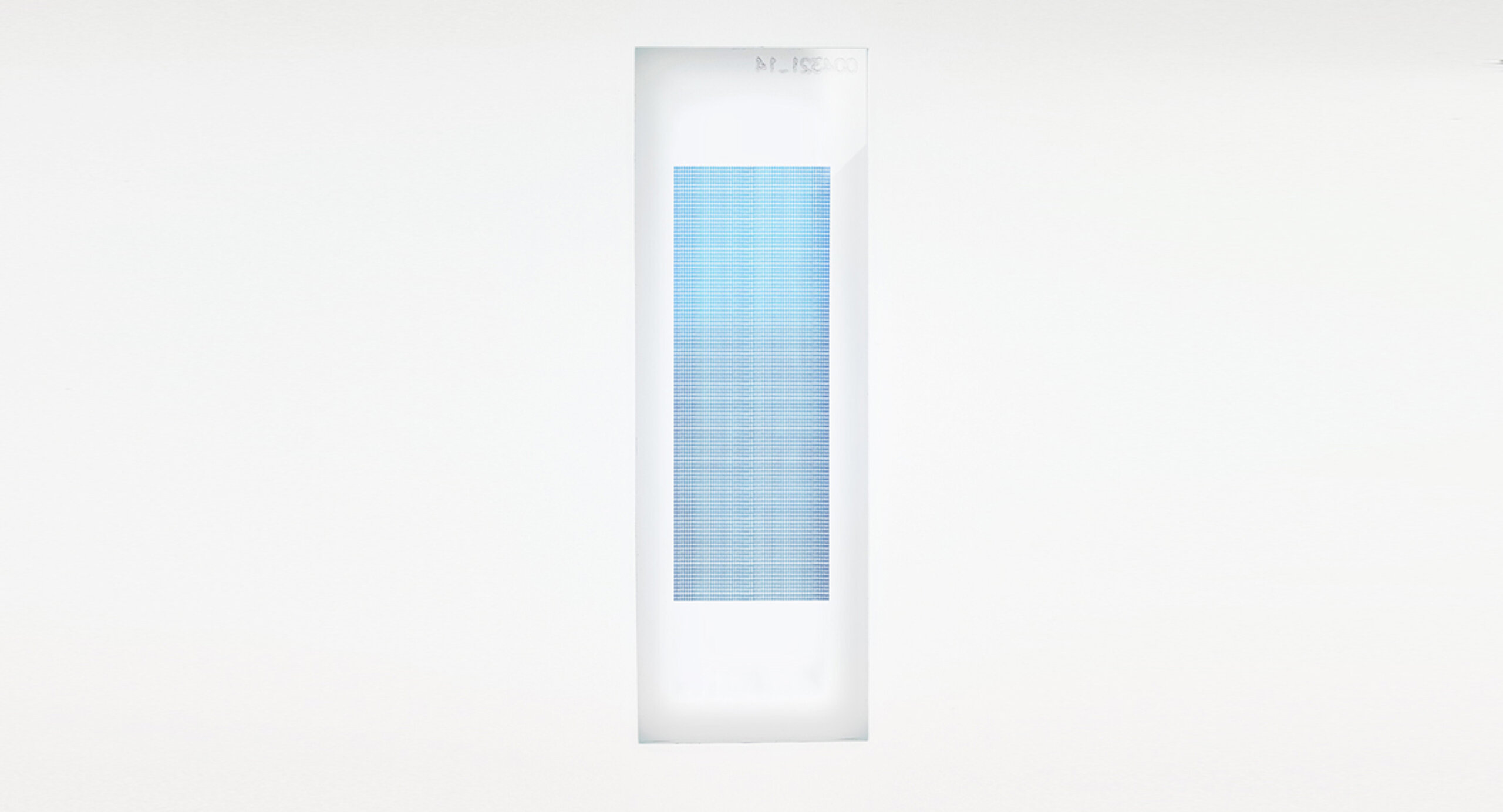

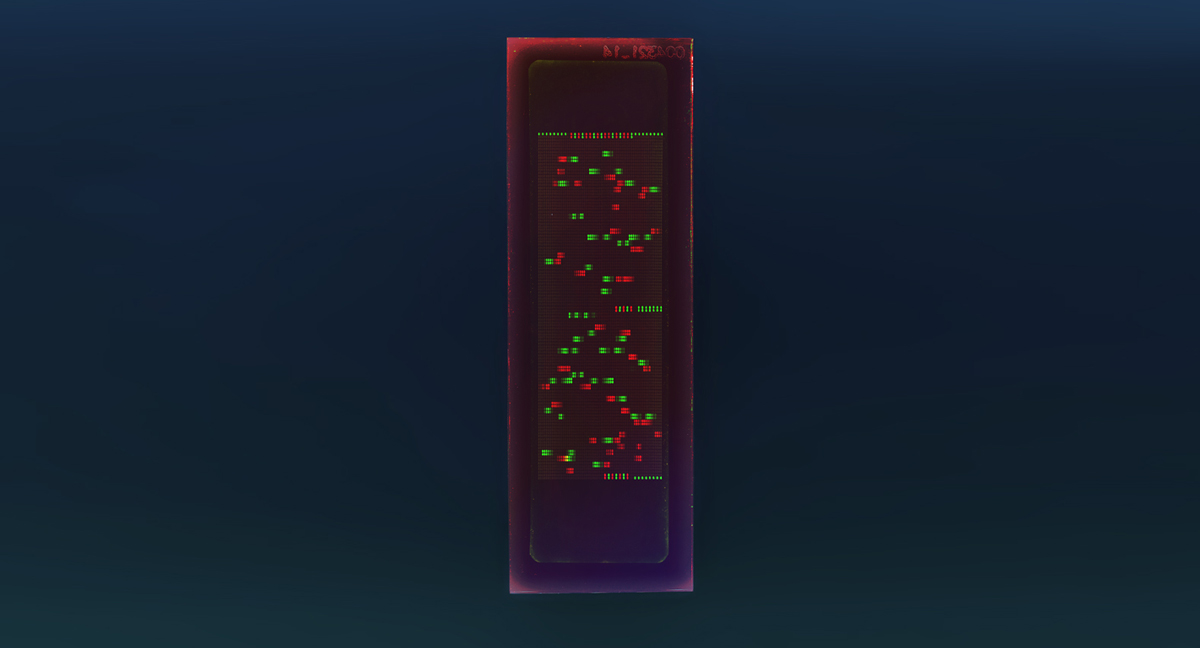

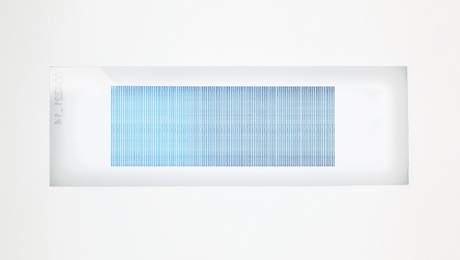

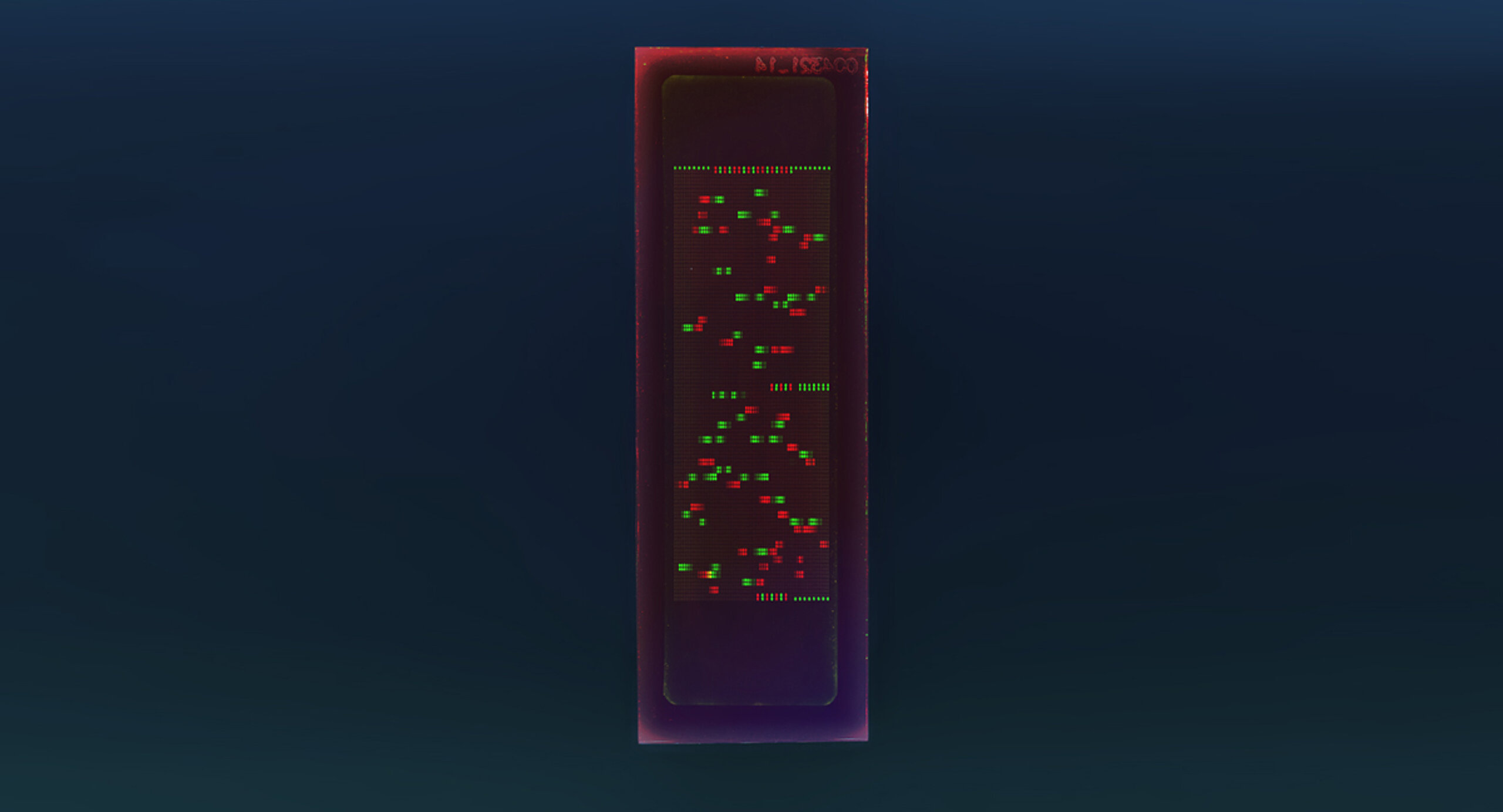

PEPperCHIP® MERS-CoV Proteome Microarray

Profile antibody responses against the entire MERS virus proteome.

The PEPperCHIP® MERS-CoV Proteome Microarray covers the entire MERS-CoV proteome translated into highly overlapping peptides. The microarray chip contains 3,818 linear 15-mer peptides with a 13-mer and 12-mer overlaps (shift 2 and 3) in duplicates for full epitope coverage. Moreover, the microarray contains HA, polio and c-Myc positive control peptides.

Identify, profile and compare MERS-CoV specific IgG, IgA, and IgM responses in patient or animal sera for vaccine development. Screen viral antigens to find and characterize immunodominant epitopes for in-vitro diagnostics research. The microarray can be used for proteome-wide epitope mapping, serum screening or biomarker discovery.

Request a Quote »

Microarray information

•

Microarray content: Whole Coronavirus HCoV-EMC/2012 proteome as overlapping peptides

•

Peptide length and overlap: 15 aa peptides with peptide-peptide overlap of 13 aa amd 12 aa (shift 2 and 3)

•

Number of peptides / spots: 3,818 / 7,636 (peptides printed in duplicate)

•

Positive control: HA (YPYDVPDYAG), polio (KEVPALTAVETGAT) and c-Myc (EQKLISEEDL) control peptides

•

Size and format: 3'' x 1'', 75.4 mm x 25.0 mm x 1.0 mm, containing 1 array copy per chip

•

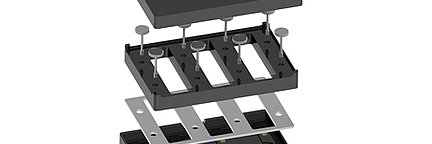

Accessories: compatible with 3/1 well PEPperCHIP® Incubation Tray



Sample information

•

Can be assayed with at least 20 µL serum/plasma or 10-20 µg/mL purified antibody.



Estimated delivery time

•

1-4 weeks for chip and optional add-on accessories

•

6-8 weeks when requested with PEPperMAP® Services.

Documentation

•

PEPperCHIP® MERS-CoV Proteome Microarray Material Data Sheet [download pdf]

•

PEPperCHIP® MERS-CoV Proteome Microarray Peptide Map [download xlsx]



Learn how to perform the assay­­­

•

PEPperCHIP® Immunoassay Protocol [download pdf] [watch video]

•

PEPperCHIP® Immunoassay Quickstart Guide [download pdf]



Steps

Materials and equipment

We recommend

Immunoassay

Incubation tray

PEPperCHIP® Incubation Tray*

Orbital shaker

-

Blocking reagents

BSA, or Rockland Blocking Buffer*

Control antibodies

PEPperCHIP® Control Antibodies

Buffers

PBS, Tween 20

Labelled secondary antibodies

Rockland secondary antibodies*

Data acquisition

Microarray scanner

Innopsys InnoScan® 710/710-IR*
LI-COR Odyssey® scanners*

See a list of compatible scanners

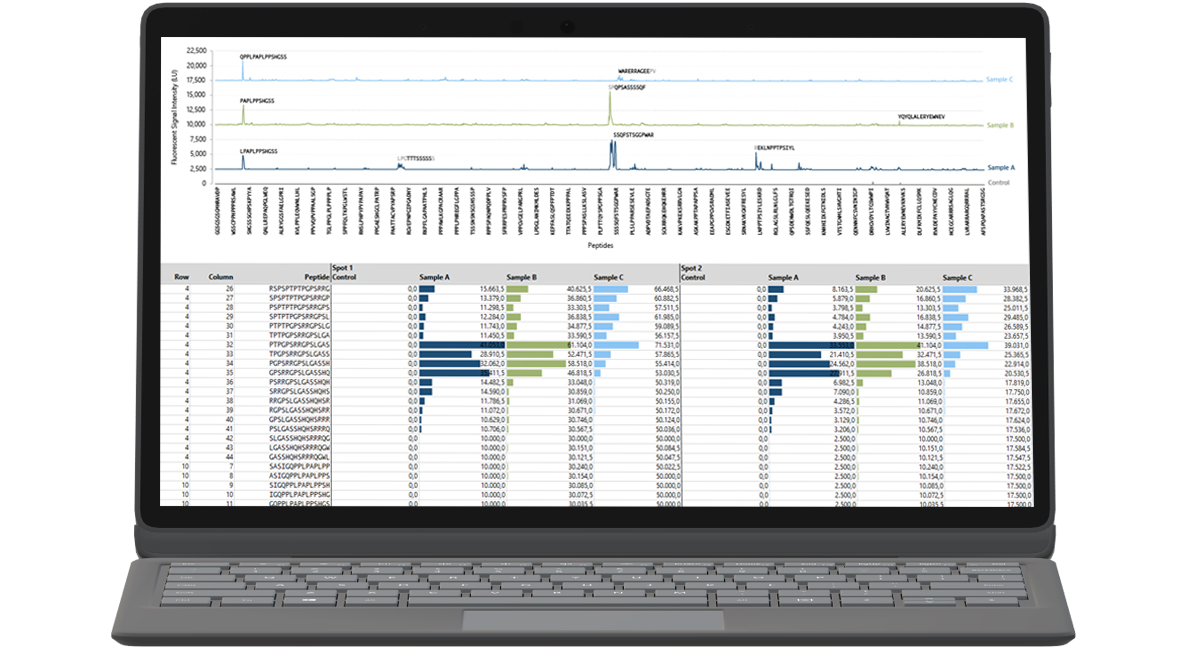

Data analysis

Fluorescence spot intensity quantification software

MAPIX Analyzer by Innopsys

Spreadsheet software

-

*used in-house by PEPperPRINT





Increased neutralization and IgG epitope identification after MVA-MERS-S booster vaccination against Middle East respiratory syndrome.
Fathi, Anahita; Dahlke, Christine; Krähling, Verena; Kupke, Alexandra; Okba, Nisreen M. A.; Raadsen, Matthijs P.; Heidepriem, Jasmin; Müller, Marcel A.; Paris, Grigori; Lassen, Susan; Klüver, Michael; Volz, Asisa; Koch, Till; Ly, My L.; Friedrich, Monika; Fux, Robert; Tscherne, Alina; Kalodimou, Georgia; Schmiedel, Stefan; Corman, Victor M.; Hesterkamp, Thomas; Drosten, Christian; Loeffler, Felix F.; Haagmans, Bart L.; Sutter, Gerd; Becker, Stephan; Addo, Marylyn M. (2022 February). [doi.org/10.1038/s41467-022-31557-0]
